GMM-ECO135/1

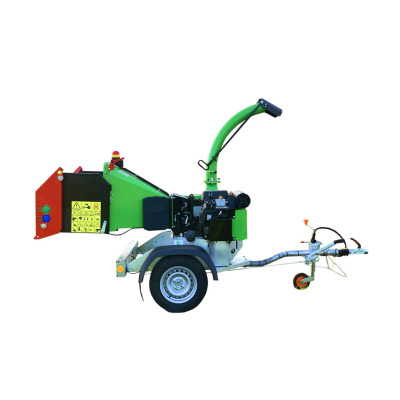

The GreenMech ECO 135 is a cost-effective road-tow wood chipper range built to be simpler to run and maintain, while still delivering the strength and performance GreenMech is known for. Available as the ECO 135 road tow or the ECO 135TT with a full 360° turntable, both models retain proven GreenMech features including twin horizontal rollers, the electronically controlled No-Stress feed system and twin disc-blade chipping technology.
Powered by a punchy yet economical 24hp Loncin petrol engine, the ECO 135 benefits from a new flywheel design that delivers impressive throughput for its size. As standard, it’s backed by a 3-year no quibble GreenMech warranty plus nationwide dealer support. Optional upgrades are available, including a variable height discharge chute, spare wheel, stowage box, LED lighting and the GreenMech HushChip pack for extra protection and reduced noise output.
-
24hp Loncin petrol engine + new flywheel design for strong throughput in a compact machine
-
No-Stress in-feed system reverses rollers to protect blades and recover rotor speed quickly
-
Twin horizontal hydraulic rollers for controlled feeding with minimal lateral movement
-
Twin disc-blade technology for efficient slicing and improved tolerance to occasional contaminants
Need Some Advice?
Technical Specifications
|
CAPACITY |
135mm |
|
ENGINE MAKE |
Loncin |
|
ENGINE OUTPUT |
24hp |
|
FUEL |
Petrol |
|
CHIPPING FLYWHEEL |
Disc Type |
|
BLADES |
2 |
|
HYDRAULIC FEED ROLLERS |
Twin Horizontal |
|
POWER CONTROL |
No Stress |
|
FUEL CAPACITY (ENGINE) |
33 Litres |
|
HYDRAULIC OIL CAPACITY |
33 Litres |
|
SPARE WHEEL |
Optional |
|
TONNES PER HOUR |
4 Tonnes Per Hour |
|
INFEED CHUTE APERTURE |
850mm x 680mm |
|
INFEED THROAT SIZE |
150mm x 135mm |
|
DISCHARGE CHUTE |
280 Degrees Rotation |
|
HOUR METER |
Standard |
|
LENGTH (TRANSPORT) |
3200mm |
|
WIDTH (TRANSPORT) |
1600mm |
|
HEIGHT (DISCHARGE CHUTE UP) |
2300mm |
|
WEIGHT |
640 kg |
|
SOUND POWER LWA |
115 dB(A) |
|
SOUND PRESSURE LPA |
91 dB(A) |
