GMM-ECO135/3

Out of stock
SKU
GMM-ECO135/3

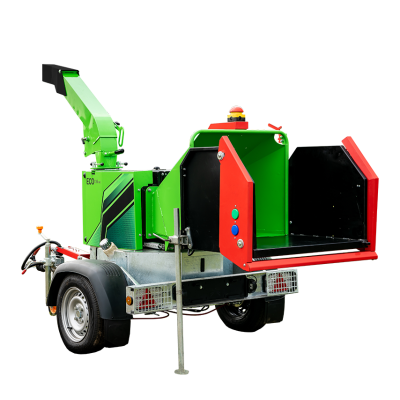

The GreenMech ECO 135 range is built to be cost-effective to own and simple to run, while still delivering the strength and performance GreenMech machines are known for. Available as the ECO 135 road tow or the ECO 135TT with a full 360° turntable, both models use a punchy yet economical 24hp Loncin petrol engine and a new flywheel design for impressive throughput in a compact unit.

GreenMech’s proven features come as standard, including twin horizontal hydraulic rollers, an electronically controlled No-Stress in-feed system and twin disc-blade chipping technology. The ECO 135TT’s turntable lets the full in-feed and flywheel head rotate 360° without moving the chassis, ideal when access and site layout are tight. A folding infeed chute improves transport visibility and reduces storage length, while the generous 850mm x 680mm hopper and 150mm x 135mm letterbox throat help heavily forked material feed cleanly. Every model includes a 3-year no quibble warranty and nationwide dealer support.

Top Features



  • 24hp Loncin petrol engine + new flywheel design for strong throughput in a compact chipper

  • No-Stress in-feed system automatically reverses rollers to protect blades and recover rotor speed

  • Twin disc-blade technology for efficient slicing and better tolerance to occasional contaminants

  • Twin horizontal hydraulic rollers + wide hopper (850mm x 680mm with 150mm x 135mm letterbox throat) for smooth feeding of bulky, forked material

Need Some Advice?

Technical Specifications

CAPACITY

135mm

ENGINE MAKE

Loncin

ENGINE OUTPUT

24hp

FUEL

Petrol

CHIPPING FLYWHEEL

Disc Type

BLADES

2

HYDRAULIC FEED ROLLERS

Twin Horizontal

POWER CONTROL

No Stress

FUEL CAPACITY (ENGINE)

33 Litres

HYDRAULIC OIL CAPACITY

33 Litres

SPARE WHEEL

Optional

TONNES PER HOUR

4 Tonnes Per Hour

INFEED CHUTE APERTURE

850mm x 680mm

INFEED THROAT SIZE

150mm x 135mm

DISCHARGE CHUTE

280 Degrees Rotation

HOUR METER

Standard

LENGTH (TRANSPORT)

28300mm

WIDTH (TRANSPORT)

1600mm

HEIGHT (DISCHARGE CHUTE UP)

2340mm

WEIGHT

720 kg

SOUND POWER LWA

114 dB(A)

SOUND PRESSURE LPA

91 dB(A)
