GMM-EVO205SUT50

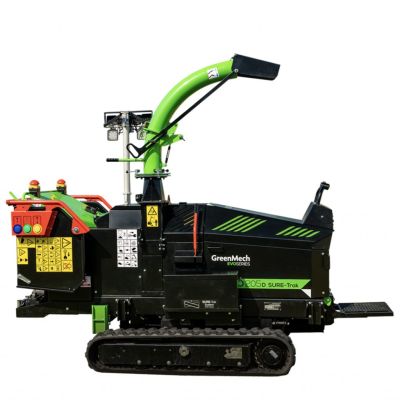

The EVO 205D SURE-Trak is the next-generation tracked chipper designed to tackle the toughest terrains, continuing the legacy of the legendary 19-28 SURE-Trak. Featuring GreenMech’s innovative SURE-Trak System, this chipper offers superior stability and flexibility on uneven ground and slopes over 35 degrees. The pivoting independent track assembly ensures the machine stays level, protecting the engine and enhancing safety. Equipped with a powerful 50hp Kubota diesel engine, a high-capacity in-feed hopper, and GreenMech’s Smart Sense No-Stress system, the EVO 205D maximizes productivity and minimizes downtime. Built for durability and backed by a three-year warranty, it's the ultimate solution for demanding environments like highways and railway work.
-
SURE-Trak System: Independent pivoting track assemblies for enhanced stability and safe traversing on steep slopes and uneven ground.
-
Large In-feed Hopper: 1250mm x 700mm hopper handles bulky materials without trimming.
-
Smart Sense No-Stress System: Automatically optimizes material throughput for maximum chipping efficiency.
-
Durable Design: High-tensile steel chassis, heavy-duty flywheel, and a three-year warranty ensure robust performance and longevity.
Need Some Advice?
Technical Specifications
| CAPACITY | 205mm |
| ENGINE MAKE | Kubota D 1803-CR-TE4B |
| ENGINE OUTPUT | 50hp |
| FUEL | Diesel |
| CHIPPING FLYWHEEL | Disc Type |
| BLADES | 6 |
| GROUND CLEARANCE | 540mm Max / 250mm Min |
| TRACK SPEED | 4kph |
| HYDRAULIC FEED ROLLERS | Twin Horizontal |
| POWER CONTROL | No Stress |
| FUEL CAPACITY (ENGINE) | 50 Litres |
| HYDRAULIC OIL CAPACITY | 50 Litres |
| SPARE WHEEL | N/A |
| TONNES PER HOUR | 22 Cubic Metres / 7 Tonnes Per Hour |
| INFEED CHUTE APERTURE | 1250mm x 700mm |
| INFEED THROAT SIZE | 205mm x 270mm |
| DISCHARGE CHUTE | 280 Degrees Rotation |
| HOUR METER | Standard |
| LENGTH (TRANSPORT) | 3860mm Max / 3020mm Min |
| WIDTH (TRANSPORT) | 2356mm Max / 1550mm Min |
| HEIGHT (DISCHARGE CHUTE UP) | 2760mm Max |
| WEIGHT | 2150 kg |
| SOUND POWER LWA | 118 dB(A) |
| SOUND PRESSURE LPA | 91 dB(A |
