GMM-EVO205ST50

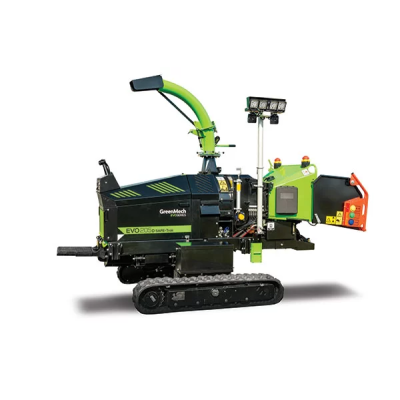

The EVO 205D SAFE-Trak is the ultimate tracked chipper designed for challenging terrain such as highways and railway cuttings. Featuring GreenMech's award-winning SAFE-Trak System, this machine provides exceptional ground clearance of up to 400mm, making it ideal for power line and railway track maintenance. Powered by a 50hp Kubota diesel engine and built with a high-tensile steel chassis, it offers robust performance, easy maintenance, and unmatched efficiency. The EVO 205D ensures safe operation even on steep embankments, and with its low maintenance design, it maximizes productivity and durability.
-
SAFE-Trak System: Provides 400mm ground clearance and exceptional manoeuvrability for tough terrains.
-
High Capacity In-feed Hopper: 1250mm x 700mm hopper handles bulky material without the need for pre-trimming.
-
Smart Sense No-Stress System: Automatically adjusts material throughput for optimized chipping efficiency.
-
Durable Construction: Built with a high-tensile steel chassis, heavy-duty flywheel, and a three-year warranty for maximum reliability.
Need Some Advice?
Technical Specifications
| CAPACITY | 205mm |
| ENGINE MAKE | Kubota D 1803-CR-TE4B |
| ENGINE OUTPUT | 50hp |
| FUEL | Diesel |
| CHIPPING FLYWHEEL | Disc Type |
| BLADES | 6 |
| GROUND CLEARANCE | 530mm Max / 250mm Min |
| TRACK SPEED | 4kph |
| HYDRAULIC FEED ROLLERS | Twin Horizontal |
| POWER CONTROL | No Stress |
| FUEL CAPACITY (ENGINE) | 50 Litres |
| HYDRAULIC OIL CAPACITY | 50 Litres |
| SPARE WHEEL | N/A |
| TONNES PER HOUR | 22 Cubic Metres / 7 Tonnes Per Hour |
| INFEED CHUTE APERTURE | 1250mm x 700mm |
| INFEED THROAT SIZE | 205mm x 270mm |
| DISCHARGE CHUTE | 280 Degrees Rotation |
| HOUR METER | Standard |
| LENGTH (TRANSPORT) | 3860mm Max / 3020mm Min |
| WIDTH (TRANSPORT) | 2296mm Max / 1490mm Min |
| HEIGHT (DISCHARGE CHUTE UP) | 2890mm Max |
| WEIGHT | 2085 kg |
| SOUND POWER LWA | 118 dB(A) |
| SOUND PRESSURE LPA | 91 dB(A) |
