GMM-QUADCHIP160

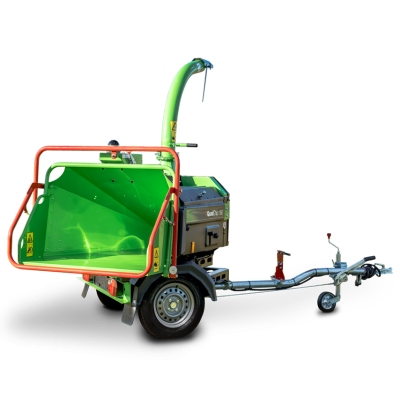

The QuadChip 160P is a specialist, road-tow chipper designed for roadside and highway maintenance contractors. Its 360-degree swivelling chassis allows operators to position the in-feed chute away from the roadside, enhancing safety for both the road and the operator. Powered by a 37hp B&S Vanguard petrol engine, this compact chipper has a towing weight of under 750kg, making it ideal for roadwork applications.
The robust design is built around a deep beam, high-tensile steel chassis that ensures durability and strength. The generous 800mm x 700mm in-feed hopper easily handles bulky material, minimizing the need for trimming. Twin vertical feed rollers (160mm x 230mm) work in tandem with the electronically controlled ‘No-Stress’ system, adjusting throughput speed to ensure maximum chipping efficiency.
The renowned Disc-Blade system features a rotating cutting edge, extending sharpening intervals to approximately 150 hours. This reduces downtime, cuts maintenance costs, and ensures top-tier performance for your job.
Maintenance is easy, with centralized grease points and simple daily checkovers, meaning your chipper stays operational without fuss.
As with all GreenMech chippers, the QuadChip 160P is built to last, with a heavy-duty chassis and a durable powder-coat finish that holds up over time, maintaining strong residual value. Plus, it runs quietly, minimizing noise pollution, a key feature for roadside work. The machine comes with a full, unlimited three-year, no-quibble warranty for peace of mind.
-
360-degree swivelling chassis for enhanced road and operator safety
-
37hp B&S Vanguard petrol engine with a sub-750kg towing weight
-
800mm x 700mm in-feed hopper to handle large, bulky material with ease
-
Disc-Blade system with extended sharpening intervals of 150 hours
Technical Specifications
| CAPACITY | 160mm |
| ENGINE MAKE | Kubota |
| ENGINE OUTPUT | 25hp |
| FUEL | Diesel |
| TURNTABLE | 360˚ locking at 45˚ increments |
| CHIPPING FLYWHEEL | Disc Type |
| BLADES | 4 |
| HYDRAULIC FEED ROLLERS | Twin Horizontal |
| POWER CONTROL | No Stress |
| FUEL CAPACITY (ENGINE) | 32 Litres |
| HYDRAULIC OIL CAPACITY | 32 Litres |
| SPARE WHEEL | N/A |
| TONNES PER HOUR | 11 Cubic Metres / 3.5 Tonnes Per Hour |
| INFEED CHUTE APERTURE | 1100mm x 800mm |
| INFEED THROAT SIZE | 160mm x 230mm |
| DISCHARGE CHUTE | 280 Degrees Rotation |
| HOUR METER | Standard |
| LENGTH (TRANSPORT) | 3211mm |
| WIDTH (TRANSPORT) | 1502mm |
| HEIGHT (DISCHARGE CHUTE UP) | 2545mm |
| WEIGHT | 749 kg |
| SOUND POWER LWA | 116 dB(A) |
| SOUND PRESSURE LPA | 92 dB(A) |
