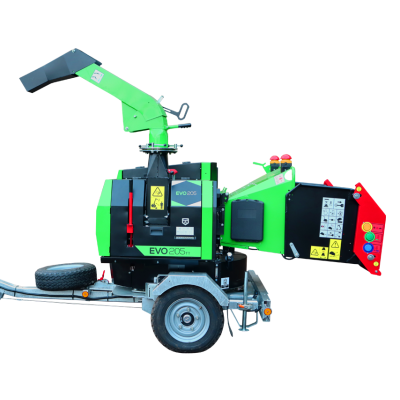

EVO 205DTT (T-Table)
Introducing the EVO 205TT – a game-changing 8-inch turntable chipper that takes your chipping to a whole new level. With its 360-degree rotating body, the EVO 205TT allows for seamless operation from any angle, improving efficiency and versatility on the job.
The 1250mm x 700mm in-feed hopper ensures large, bulky material flows freely, without the need for trimming. Twin hydraulically powered feed rollers work in tandem with the patented No-Stress system, automatically managing material flow for optimal chipping performance.
Equipped with the renowned Disc-Blade configuration, the EVO 205TT extends sharpening intervals to approximately 150 hours, reducing downtime, maintenance, and labour costs, while maximising productivity.
Daily maintenance is minimal, consisting of a few grease points and basic checkovers, making it easy to keep the machine in top condition.
Built with a heavy-duty steel frame and finished with a durable powder-coat, the EVO 205TT is designed for lasting performance and high residual value. Backed by an unlimited three-year, no-quibble warranty, this chipper is ready for whatever challenges lie ahead.
-
360-degree rotating turntable for ultimate flexibility and ease of operation
-
1250mm x 700mm in-feed hopper to handle bulky material with minimal prep
-
Disc-Blade system with extended sharpening intervals for reduced downtime
-
Minimal maintenance with simple grease points and easy checkovers
Need Some Advice?
Technical Specifications
| CAPACITY | 205mm |
| ENGINE MAKE | Kubota D 1803-CR-TE4B |
| ENGINE OUTPUT | 50hp |
| FUEL | Diesel |
| CHIPPING FLYWHEEL | Disc Type |
| BLADES | 6 |
| TURNTABLE | Yes (360 degrees) |
| HYDRAULIC FEED ROLLERS | Twin Horizontal |
| POWER CONTROL | No Stress |
| FUEL CAPACITY (ENGINE) | 50 Litres |
| HYDRAULIC OIL CAPACITY | 50 Litres |
| SPARE WHEEL | Standard |
| TONNES PER HOUR | 22 Cubic Metres / 7 Tonnes Per Hour |
| INFEED CHUTE APERTURE | 1250mm x 700mm |
| INFEED THROAT SIZE | 205mm x 270mm |
| DISCHARGE CHUTE | 280 Degrees Rotation |
| HOUR METER | Standard |
| LENGTH (TRANSPORT) | 3545mm Max |
| WIDTH (TRANSPORT) | 1960mm Max |
| HEIGHT (DISCHARGE CHUTE UP) | 2715mm Max |
| WEIGHT | 1760 kg |
| SOUND POWER LWA | 120 dB(A) |
| SOUND PRESSURE LPA | 91 dB(A) |
