GMM-EVO205

Out of stock
SKU
GMM-EVO205

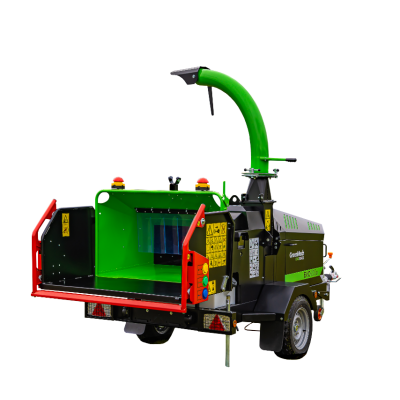

The EVO 205D is an evolution in 8-inch chipping performance, engineered for operators who want serious power, reliability, and efficiency. Built around a deep-beam, high-tensile steel chassis, it delivers outstanding strength and stability in demanding conditions.

A large 1250mm x 700mm in-feed hopper allows bulky material to flow freely with minimal preparation. Twin horizontal feed rollers work alongside the Smart Sense No-Stress system to automatically control material flow and maintain consistent throughput.

Powered by a 50hp Kubota Stage V diesel engine, the EVO 205D drives a heavy-duty flywheel with dual banks of disc blades. The Disc Blade System extends sharpening intervals to around 150 hours, reducing downtime and keeping productivity high. Easy access maintenance points and a hinged steel bonnet make day-to-day servicing straightforward.

Top Features



  • 50hp Kubota Stage V diesel engine for powerful, efficient performance

  • 1250mm x 700mm in-feed hopper for handling bulky material with ease

  • Disc Blade System with extended sharpening intervals of up to 150 hours

  • Smart Sense No-Stress system to optimise throughput and chipping efficiency

Need Some Advice?

Technical Specifications

CAPACITY 205mm
ENGINE MAKE Kubota D 1803-CR-TE4B
ENGINE OUTPUT 50hp
FUEL Diesel
CHIPPING FLYWHEEL Disc Type
BLADES 6
HYDRAULIC FEED ROLLERS Twin Horizontal
POWER CONTROL No Stress
FUEL CAPACITY (ENGINE) 33 Litres
HYDRAULIC OIL CAPACITY 33 Litres
SPARE WHEEL Standard
TONNES PER HOUR 22 Cubic Metres / 7 Tonnes Per Hour
INFEED CHUTE APERTURE 1250mm x 700mm
INFEED THROAT SIZE 205mm x 270mm
DISCHARGE CHUTE 280 Degrees Rotation
HOUR METER Standard
LENGTH (TRANSPORT) 4000mm Max
WIDTH (TRANSPORT) 1600mm Max
HEIGHT (DISCHARGE CHUTE UP) 2760mm Max
WEIGHT 1450 kg
SOUND POWER LWA 118 dB(A)
SOUND PRESSURE LPA 91 dB(A)
