GMM-EVO205DT

Out of stock
SKU
GMM-EVO205DT

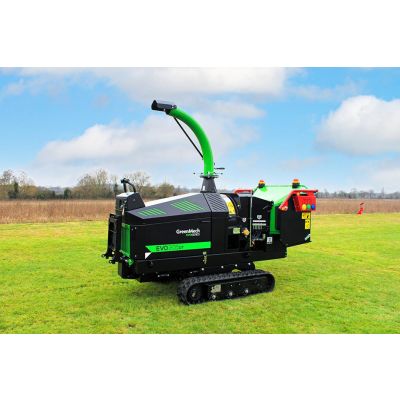

The EVO 205DT combines powerful 8-inch chipping performance with a proven fixed track system for confident operation on uneven and demanding ground. With 260mm ground clearance and independent track motors, it delivers smooth tracking at speeds up to 3.2kph. A dedicated “Track or Chip” switch and folding operator platform enhance safety and comfort during use.

Built on a deep-beam, high-tensile steel chassis, the EVO 205DT offers exceptional strength and long-term durability. The large 1250mm x 700mm in-feed hopper allows bulky material to be processed with minimal preparation, while twin horizontal feed rollers and the Smart Sense No-Stress system automatically regulate material flow for consistent, efficient chipping.

Power comes from a 50hp Kubota Stage V diesel engine driving a heavy-duty flywheel with twin banks of disc blades. GreenMech’s Disc Blade System extends sharpening intervals to around 150 hours, reducing downtime and maintenance costs. Daily servicing is straightforward thanks to a hinged steel bonnet, centralised grease points, and easy-to-remove shear bars.

Finished with a durable powder-coat and backed by a full, unlimited three-year warranty, the EVO 205DT is built to perform and retain strong residual value.

Top Features



  • Fixed track system with 260mm ground clearance and independent drive motors

  • 50hp Kubota Stage V diesel engine with heavy-duty disc flywheel

  • 1250mm x 700mm in-feed hopper for efficient handling of bulky material

  • Disc Blade System & Smart Sense No-Stress for reduced downtime and consistent throughput

Need Some Advice?

Technical Specifications

CAPACITY 205mm
ENGINE MAKE Kubota D 1803-CR-TE4B
ENGINE OUTPUT 50hp
FUEL Diesel
CHIPPING FLYWHEEL Disc Type
BLADES 6
GROUND CLEARANCE 260mm
TRACK SPEED 3kph
HYDRAULIC FEED ROLLERS Twin Horizontal
POWER CONTROL No Stress
FUEL CAPACITY (ENGINE) 50 Litres
HYDRAULIC OIL CAPACITY 50 Litres
SPARE WHEEL N/A
TONNES PER HOUR 22 Cubic Metres / 7 Tonnes Per Hour
INFEED CHUTE APERTURE 1250mm x 700mm
INFEED THROAT SIZE 205mm x 270mm
DISCHARGE CHUTE 280 Degrees Rotation
HOUR METER Standard
LENGTH 3000mm Platform & Flap Down
LENGTH (TRANSPORT) 3770mm Platform & Flap Down
WIDTH (TRANSPORT) 1450mm Max
HEIGHT (DISCHARGE CHUTE UP) 2730mm Max
WEIGHT 1700 kg
SOUND POWER LWA 118 dB(A)
SOUND PRESSURE LPA 91 dB(A)
