GMM-ARB130/MT23P/MC

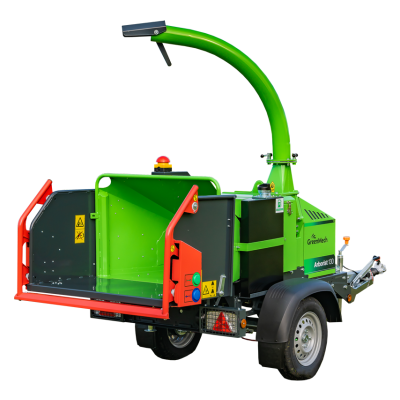

The GreenMech Arborist 130 is the smallest road-tow model in the range, but it delivers serious output, handling material up to 150mm (6 inch). Built with the same heavy-duty construction as larger GreenMech chippers and powered by a popular 23hp Honda petrol engine, it’s a strong-value option for landscapers, arborists, contractors and hire fleets.
A high-tensile steel chassis, large 970mm x 790mm hopper and twin vertical feed rollers with electronic No-Stress control keep bulky material flowing efficiently. The Disc-Blade system allows edge rotation and extends sharpening intervals to around 150 hours, reducing downtime. Minimal daily maintenance, quiet running, durable powder-coat finish, strong residual value and a full unlimited 3-year warranty come as standard.
-
Electronically controlled No-Stress in-feed
Automatically reverses the rollers to protect the blades and lets rotor speed recover fast for higher output. -
Extra-wide hopper and letterbox throat
970mm x 790mm hopper with a 150cm x 230cm letterbox-style throat helps reduce bushy brash and feeds heavily forked branches smoothly. -
Twin vertical hydraulic rollers
Crush material efficiently with minimal sideways movement for steady, controlled feeding. -
Adjustable drawbar
Helps match the towing vehicle while maintaining the minimum 600mm in-feed table height. -
Folding infeed chute
Improves visibility of the lighting board in transit and shortens overall length for easier storage. -
Quiet running
Hinged steel bonnet with noise-reduction lining, paired with the disc blade system, delivers 116 dB power / 92 dB pressure.
Technical Specifications
|
CAPACITY |
150mm |
|
ENGINE MAKE |
Honda GX 630 |
|
ENGINE OUTPUT |
23hp |
|
FUEL |
Petrol/Gasoline |
|
CHIPPING FLYWHEEL |
Disc Type |
|
BLADES |
4 |
|
HYDRAULIC FEED ROLLERS |
Twin Vertical |
|
POWER CONTROL |
No Stress |
|
FUEL CAPACITY (ENGINE) |
27 Litres |
|
HYDRAULIC OIL CAPACITY |
30 Litres |
|
SPARE WHEEL |
N/A |
|
TONNES PER HOUR |
9.5 Cubic Metres / 3 Tonnes Per Hour |
|
INFEED CHUTE APERTURE |
970mm x 790mm |
|
INFEED THROAT SIZE |
150mm x 230mm |
|
DISCHARGE CHUTE |
280 Degrees Rotation |
|
HOUR METER |
Standard |
|
LENGTH (TRANSPORT) |
3556mm |
|
WIDTH (TRANSPORT) |
1290mm |
|
HEIGHT (DISCHARGE CHUTE UP) |
2335mm |
|
WEIGHT |
670 kg |
|
SOUND POWER LWA |
116 dB(A) |
|
SOUND PRESSURE LPA |
92 dB(A) |
