GMM-EVO165DT45

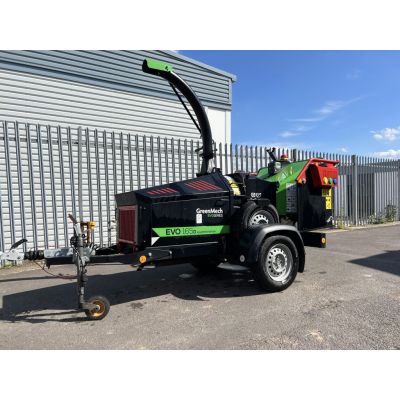

The EVO 165D-45 LE pushes the boundaries of performance, now with a 45hp Kubota Turbo Diesel engine. Capable of processing up to seven tonnes of material per hour, this limited edition model is one of the most productive in its class. Available in both road-tow and tracked versions, it’s fully Stage V compliant for sale, operation, and resale under emissions regulations.
With a 165mm chipping capacity, Disc-Blade chipping technology, and No-Stress power control, the EVO 165D-45 LE is designed for maximum efficiency. Its horizontally expanding track system and lightweight 1025kg build ensure smooth operation, while a 3-year unlimited parts, labour, and hours warranty provides peace of mind.
-
165mm chipping capacity
-
45hp Kubota diesel engine
-
Horizontally expanding track system
-
Disc-blade chipping technology
-
No-Stress power control
-
1025kg weight
Technical Specifications
| Capacity | 165mm |
| Engine Make | Kubota |
| Engine Output | 45hp |
| Fuel | Diesel |
| Chipping Flywheel | Disc Type |
| Flywheel Speed | 1350 rpm |
| Blades | 4 |
| Hydraulic feed Rollers | Twin Horizontal |
| Power Control | No Stress |
| Fuel Capacity (Engine) | 33 Litres |
| Hydraulic Oil Capacity | 33 Litres |
| Tyre Size (Towed) | 16/80/R13 |
| Spare Wheel | Standars |
| Tonnes Per Hour | 7 |
| Infeed Chute Aperture | 700mm x 1110mm |
| Infeed Throat Size | 165mm x 220mm |
| Discharge Chute | 280 degrees rotation |
| Hour Meter | Standard |
| Length (transport) | 3500mm Max |
| Width | 1515 mm Max |
| Height | 2600 mm Max |
| Weight | 1025 Kg |
| Sound Power LWA | 116 dB(A) |
| Sound Pressure LPA | 92 dB(A) |
