GMM-ECO-TMP

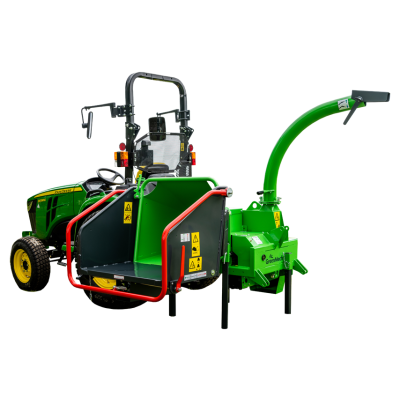

The Eco 150 TMP is a compact, cost-effective chipping solution for those looking to maximize the capability of their compact tractor fleet. Mounted on a three-point linkage, it uses the tractor’s Power-take-off shaft to drive the flywheel, while the tractor’s hydraulics control the feed rolls. Ideal for landscape maintenance, golf courses, and large estates, the Eco 150 TMP shares its in-feed opening and flywheel with the popular Arborist 150 and can be used by tractors with up to 45 hp. With minimal maintenance, a generous hopper, and a patented Disc-Blade system, it delivers efficiency and durability for a wide range of tasks.
-
Three-point linkage mounted: Powered by tractor’s Power-take-off shaft, with hydraulics controlling feed rolls
-
Generous in-feed hopper (800mm x 700mm): Handles bulky materials without trimming
-
No-Stress feed system: Electronically controls speed for optimal throughput
-
Disc-Blade chipping system: Extends sharpening intervals to 150 hours, reducing downtime and maintenance
Need Some Advice?
Technical Specifications
| CAPACITY | 150mm |
| TRACTOR MOUNTED | 25-45hp Required |
| CHIPPING FLYWHEEL | Disc Type |
| BLADES | 2 |
| FUEL CAPACITY (ENGINE) | N/A |
| TONNES PER HOUR | 4.5 Tonnes Per Hour |
| INFEED CHUTE APERTURE | 800mm x700mm |
| INFEED THROAT SIZE | 150mm x 150mm |
| DISCHARGE CHUTE | 280 Degrees Rotation |
| HOUR METER | Standard |
| LENGTH (TRANSPORT) | 1060mm |
| WIDTH (TRANSPORT) | 1745mm |
| HEIGHT (DISCHARGE CHUTE UP) | 2220mm |
| WEIGHT | 195 kg |
| SOUND POWER LWA | 117 dB(A) |
| SOUND PRESSURE LPA | 93 dB(A) |
