GMM-CHIPMASTERTMP

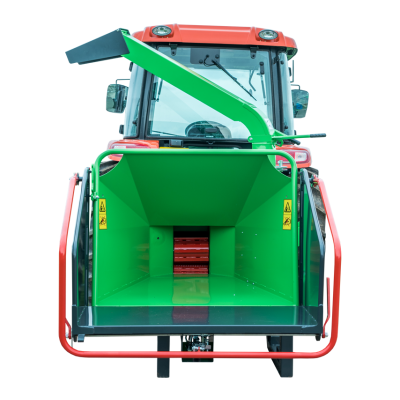

The ChipMaster 220 TMP is the ultimate solution for high-throughput chipping with up to 80hp of tractor power. Mounted on a three-point linkage, it uses the tractor’s Power-take-off shaft to drive the flywheel, with hydraulic feed rollers powered by the tractor's hydraulic system. Designed for demanding tasks, this chipper features a robust, high-tensile steel chassis and a generous 1100mm x 800mm in-feed hopper, capable of handling bulky materials without trimming. The No-Stress feed system and Disc-Blade chipping technology maximize efficiency, reduce downtime, and ensure durability with minimal maintenance.
-
80hp tractor compatibility: Delivers maximum chipping output with efficient use of available equipment
-
Large in-feed hopper (1100mm x 800mm): Handles bulky material without trimming for high throughput
-
Aggressive twin feed rollers (230mm x 230mm): Hydraulically powered for smooth material feeding
-
Disc-Blade system: Extends sharpening intervals to 150 hours, reducing downtime and maintenance
Need Some Advice?
Technical Specifications
| CAPACITY | 220mm |
| TRACTOR MOUNTED | 60-80hp Required |
| CHIPPING FLYWHEEL | Disc Type |
| BLADES | 6 |
| HYDRAULIC FEED ROLLERS | Twin Horizontal |
| POWER CONTROL | No Stress |
| FUEL CAPACITY (ENGINE) | N/A |
| HYDRAULIC OIL CAPACITY | 44 Litres |
| TONNES PER HOUR | 22 Cubic Metres / 7 Tonnes Per Hour |
| INFEED CHUTE APERTURE | 1100mm x 800mm |
| INFEED THROAT SIZE | 230mm x 230mm |
| DISCHARGE CHUTE | 280 Degrees Rotation |
| HOUR METER | Standard |
| LENGTH (TRANSPORT) | 2200mm |
| WIDTH (TRANSPORT) | 1340mm |
| HEIGHT (DISCHARGE CHUTE UP) | 2450mm |
| WEIGHT | 860 kg |
| SOUND POWER LWA | 117 dB(A) |
| SOUND PRESSURE LPA | 92 dB(A) |
