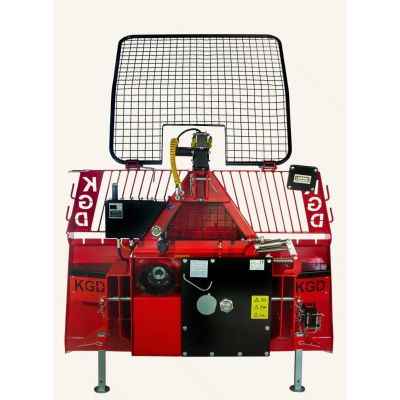

KGD 850 EH SA
This professional Königswieser radio cable winch combines electro-hydraulic operation with maximum stability and a powerful 8.5-tonne pulling force for demanding forestry work. The brake holding force helps stop rope overrun, while the hydraulically actuated 3-disc clutch (via ring cylinder) delivers consistent contact pressure and built-in overload protection.
As standard, it includes an infinitely adjustable cable inlet brake and automatic cable ejection to prevent the drum from rolling and to keep handling controlled on the job. Stability is reinforced through steel-strut lattice bracing, a counter-mounted rope inlet and a strengthened frame, supported by a reinforced drive chain for strong, reliable power transmission.
Supplied with hydraulic self-supply, self-adjusting 3-disc clutch, reduction gear, lower rope inlet, trailer clutch, dead man’s brake, protective grating and support feet. Safety precautions in accordance with ÖNORM L 5276, built to CE regulations, supplied with declaration of conformity.
-
8.5-tonne pulling force with electro-hydraulic operation for professional forestry work
-
Hydraulic self-adjusting 3-disc clutch with ring cylinder actuation and overload protection
-
Infinitely adjustable cable inlet brake + automatic cable ejection to prevent drum roll and improve control
-
Maximum stability and power transfer via reinforced frame, steel-strut lattice bracing and reinforced drive chain
Technical Specifications
|
Tractive power below |
8.5 to |
|---|---|
|
Tractive power top |
4.7 to |
|
Medium rope speed |
0.6 m/s |
|
Max. Rope socket |
|
|
Ø 8 mm |
340 m |
|
Ø 9 mm |
260 m |
|
Ø 10 mm |
220 m |
|
Ø 11 mm |
170 m |
|
Ø 12 mm |
140 m |
|
Ø 13 mm |
120 m |
|
Automatic rope ejection |
Standard |
|
Shield width |
1’800 mm / 2’000 mm / 2’200 mm |
|
Weight without rope |
667 kg / 699 kg / 719 kg |
|
Total height |
2’300 mm |
|
Cultivation category |
II + III |
|
Recommended tractor power |
from 80 PS |
