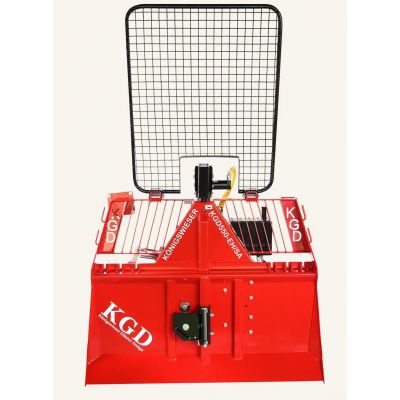

KGD 550 EH SA
This 5.5 tonne Königswieser cable winch is built for efficient, heavy-duty forwarding with tractors from 50 hp. Electro-hydraulic operation and hydraulic self-supply keep control smooth and consistent, while the large disc clutch diameter helps reduce heat build-up and wear during repeated pulls. The clutch is actuated via a ring cylinder and self-adjusts automatically, keeping performance reliable with less downtime.
Reinforced drive components and massive steel struts support demanding forestry work, and the radio control setup is a big advantage for one-man operation in the forest. Supplied as standard with hydraulic self-supply, self-adjusting clutch, reduction gear, lower cable infeed, trailer clutch, dead man’s brake, protective grille and support feet. Built to CE regulations with safety precautions in accordance with ÖNORM L 5276 and supplied with a declaration of conformity.
-
5.5 tonne pulling force for forwarding with tractors from 50 hp
-
Electro-hydraulic operation + hydraulic self-supply for smooth, dependable control
-
Large disc clutch with ring cylinder actuation reduces heat and wear and self-adjusts automatically
-
Heavy-duty construction with reinforced drive components, steel struts and radio control for one-person forestry work
Technical Specifications
|
Tractive power below |
5.5 to |
|---|---|
|
Tractive power top |
3.3 to |
|
Medium rope speed |
0.6 m/s |
|
Max. Rope socket |
|
|
Ø 8 mm |
160 m |
|
Ø 9 mm |
135 m |
|
Ø 10 mm |
100 m |
|
Ø 11 mm |
80 m |
|
Ø 12 mm |
70 m |
|
Automatic rope ejection |
Option |
|
Weight without rope |
418 kg / 434 kg |
|
Shield width |
1’500 mm / 1’700 mm |
|
Total height |
2’300 mm |
|
Total height |
I + II |
|
Recommended tractor power |
from 50 PS |
