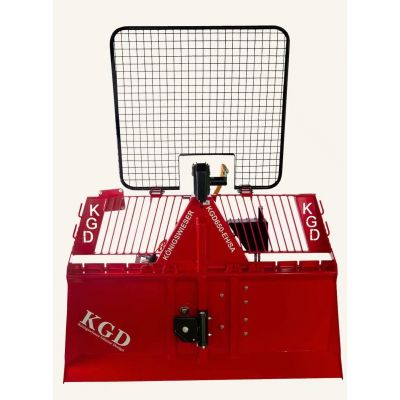

KGD 650 EH SA
The Königswieser KGD 650 radio-control winch is an electro-hydraulic solution designed for tractors from 60 hp, built for hauling heavy loads on steep terrain and longer cable lengths. Its compact, adjustable three-point attachment keeps setup flexible, while hydraulic self-supply supports consistent performance in demanding forestry work.
A large gear wheel diameter on the clutch disc helps reduce chain load, improving durability during repeated pulls. The quality-steel frame with steel strut latticework adds the stability you want when working with heavy timber. Radio control supports efficient one-man operation and helps improve work safety on site.
Supplied as standard with hydraulic self-supply, self-adjusting clutch, reduction gear, lower rope infeed, trailer clutch, dead man’s brake, protective grating and support legs. Safety precautions in accordance with ÖNORM L 5276, built to CE regulations, supplied with declaration of conformity.
-
For tractors from 60 hp with compact, adjustable three-point attachment
-
Built for steep terrain and long cable lengths when hauling heavy loads and logs
-
Reduced chain load thanks to large clutch disc gear wheel diameter
-
Stable quality-steel frame with steel strut latticework plus radio control for one-man work
Need Some Advice?
Technical Specifications
|
Tractive power below |
6.5 to |
|---|---|
|
Tractive power top |
4.1 to |
|
Medium rope speed |
0.6 m/s |
|
Max. Rope socket |
|
|
Ø 8 mm |
200 m |
|
Ø 9 mm |
170 m |
|
Ø 10 mm |
125 m |
|
Ø 11 mm |
100 m |
|
Ø 12 mm |
90 m |
|
Automatic rope ejection |
Option |
|
Weight without rope |
463 kg / 480 kg |
|
Weight without rope |
1’700 mm / 1’900 mm |
|
Total height |
2’300 mm |
|
Total height |
I + II |
|
Recommended tractor power |
from 60 PS |
