KGD 650M

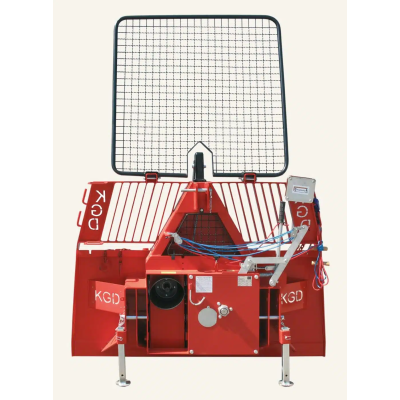

Built for demanding timber harvesting, this Königswieser forestry cable winch pairs a robust steel construction with a 1.7 m blade width, making it a strong match for heavy tractors from 60 hp. With 6.5 tonnes of pulling force and a reinforced frame, it’s designed for reliable, trouble-free operation in tougher forestry conditions.
The optimised drum-to-upper deflection pulley ratio supports excellent spooling quality across every rope layer, while the large outer drum diameter delivers generous rope capacity for longer pulls. Supplied as standard with lower rope inlet, reduction gear, hitch, dead man’s brake, protective grille and support feet. Built to CE regulations with safety precautions in accordance with ÖNORM L 5276 and supplied with a declaration of conformity.
-
6.5-tonne pulling force for heavy-duty timber harvesting
-
1.7 m blade width + reinforced steel frame suited to tractors from 60 hp
-
Excellent rope spooling thanks to optimised drum and deflection pulley ratio
-
High rope capacity with large outer drum diameter
Need Some Advice?
Technical Specifications
|
Tractive power below |
6.5 to |
|---|---|
|
Tractive power top |
4.1 to |
|
Medium rope speed |
0.6 m/s |
|
Max. Rope socket |
|
|
Ø 8 mm |
200 m |
|
Ø 9 mm |
170 m |
|
Ø 10 mm |
125 m |
|
Ø 11 mm |
100 m |
|
Ø 12 mm |
90 m |
|
Weight without rope |
433 kg |
|
Shield width |
1’700 mm |
|
Total height |
2’300 mm |
|
Cultivation category |
I + II |
|
Recommended tractor power |
from 60 PS |
