KGD 350 EH SA

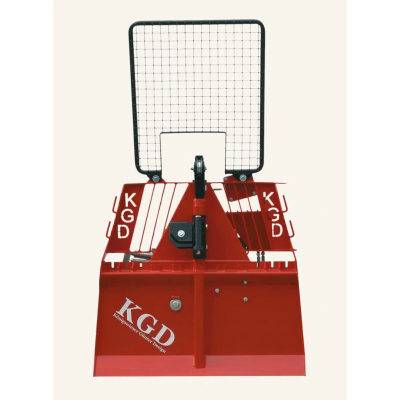

The Königswieser KGD 350 is a compact, capable forestry winch designed for small forest owners who need dependable pulling power without a heavy setup. With 3.5 t pulling force and a narrow skid plate, it’s a great match for smaller tractors from 25 HP. Even with its low weight, the KGD 350 delivers long-lasting durability thanks to a powder-coated all-steel build and a low-maintenance chain drive.
It’s an ideal choice for handling logging assortments in private forests, with a strong standard specification that’s ready to work straight away. Supplied with hydraulic self-supply, a self-adjusting clutch, reduction gearbox, bottom cable feed, towing hitch, dead man’s brake, protective grille and support legs. Built to CE regulations with safety features according to ÖNORM L 5276 and delivered with a Declaration of Conformity.
-
3.5 t pulling force for logging assortments in private forests
-
Fits small tractors from 25 HP thanks to the narrow skid plate
-
Powder-coated all-steel construction with a durable, low-weight design
-
Low-maintenance chain drive + reduction gearbox for reliable pulling performance
Technical Specifications
|
Pulling force (bottom) |
3.5 t |
|
Pulling force (top) |
2.2 t |
|
Average rope speed |
0.9 m/s |
|
Maximum rope capacity |
|
|
Ø 8 mm |
85 m |
|
Ø 9 mm |
60 m |
|
Ø 10 mm |
50 m |
|
Automatic rope ejection (SA) |
Option |
|
Weight without rope |
256 kg |
|
Shield width |
1,000 mm |
|
Total height |
2,050 mm |
|
Mounting category |
I |
|
Recommended tractor power |
from 15 HP |
