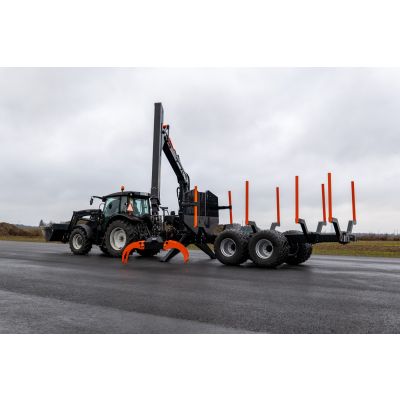

BMFM-1000HD
The BMF1000 is the largest and one of the most powerful cranes in the BMF range. As the bigger brother of the BMF800, it shares the same heavy-duty strengths, with a double telescope that extends maximum reach up to 10 metres.
Built for long, demanding workdays, the BMF1000 routes hydraulic hoses securely inside the extra-solid boom, helping protect them from damage. The boom is made from high-quality Strenx® steel, and the turning house is engineered and thoroughly tested to be especially rigid and durable. Maintenance is also quicker thanks to easy-access greasing points. A wide range of accessories is available, including valve options, additional lights, and winches to boost efficiency and safety on site.
Compatible with these trailers: BMF16T1 (except 1000HD+), BMF17T2, BMF18T1.
-
Heavy-duty crane with double telescope and up to 10 m maximum reach
-
Hydraulic hoses routed inside the boom for protection during long workdays
-
Extra-solid Strenx® steel boom + rigid, tested turning house
-
Easy maintenance with accessible greasing points + wide accessory range
Need Some Advice?
Technical Specifications
| Maximum Reach, m | 10,0 |
| Lifting Torque, kNm, gross | 119 |
| Lifting power at 4m w/o grapple and rotator, kg | 1 880 |
| Lifting power at full reach w/o grapple and rotator, kg | 710 |
| Grapple, m2 | 0,27/0,37 |
| Rotator, t | 6 |
| Slewing torque, kNm | 34,7 |
| Boom Rotation ° | 385 |
| Working Pressure, bar | 230 |
| Hydr. pump capacity, l/min | 100-150 |
