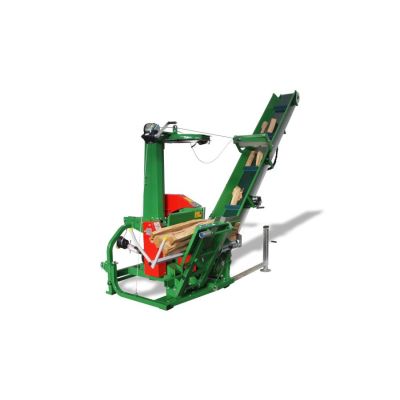

Saw bench THOR with Widia saw blade + conveyor 5 m (loading height 3.10 m) – TANDEM Model

In stock

SKU

TM-K76.111

The THOR Saw Bench (TANDEM Model) with Widia saw blade and 5 m conveyor is built for fast, clean firewood processing with reliable handling on site. The conveyor opens to 5 metres with an optional 45° inclination, reaching a loading height up to 3.10 m for easy stacking and transport. It uses a 25 cm wide double-ply PVC belt with 6 cm vulcanised blades, plus an upper tow mat for stronger pull and consistent feeding. The belt is driven from above by a hydraulic motor, with steady speed as standard and an adjustable speed option available. Positioning and extraction are managed with two manual winches, and the unit includes cut adjustment with a removable cut conveyor for straightforward setup and maintenance. For moving and positioning, it supports Cat. 1–2 3-point linkage across all models, or lifting hooks.

Top Features

5 m conveyor (optional 45° incline) with loading height up to 3.10 m
Widia saw blade for clean, efficient cutting
Double-ply 25 cm PVC belt with 6 cm vulcanised blades + upper tow mat for strong pull
Hydraulic motor drive (steady speed, adjustable option) with two manual winches for positioning

Need Some Advice?

Technical Specifications

Conveyor belt	5m
Width x Length	0.25 x 4.70 m
Max. discharge height at 45°	3.10 m
Power required (HP / kW)	25 / 18
Weight (kg)	530
