AKM-2000EK-K-CUTTINSUL

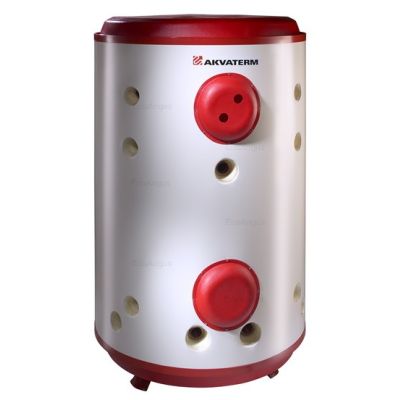

The AKVA EK 2000* is a highly durable and efficient steel tank designed for versatile applications, with a seamless polyurethane insulation system for optimal heat retention. It features a corrosion-protected exterior and a standard hot water coil (35 litres per minute) for domestic heating. The tank’s insulation thickness is 150mm for capacities up to 2000 litres and 100mm for larger tanks, ensuring efficient thermal performance. The lower hatch is designed for additional solar or heating coils, while the tank includes built-in guide pipes that allow for proper heat layering. With a standard pressure class of 3.0 Bar, it can be customized to 4.0 or 6.0 Bar upon request.
-
Efficient Insulation: 150mm seamless polyurethane insulation up to 2000 litres for optimal heat retention.
-
Coils & Pre-Heating Options: Standard 35 litres/min domestic hot water coil with optional solar and heating coils for enhanced performance.
-
Corrosion-Protected Exterior: Coated with corrosion protection paint to ensure long-lasting durability and reliability.
-
Customizable Pressure Classes: Standard 3.0 Bar pressure, with options for 4.0 or 6.0 Bar on request for tailored performance.
Need Some Advice?
Technical Specifications
| Model | AKVA 2000 EK |
| Diameter mm | 1500 |
| Height mm | 2250 |
| Weight kg | 330 |
| Connections Size (ID 2/5) | 1 1/4" |
| Resistor Couplings | 4 |
